Custom processing brand climbing Carolina Model LBP-1800

Power 18 (Kw) Weight 2500 (kg) minimum processing size 450 * 500mm

Max size 2400 * 1800mm Thickness range 3-40 (mm) feed rate of 24 (m / min)

Dimension 18800 * 1600 * 2900 (mm) Glass Machinery kind of hollow glass processing equipment production line type insulating glass production line

Grid glass production types of glass, float glass, laminated glass, architectural glass, hollow glass specifications 1600,1800,2200,2500

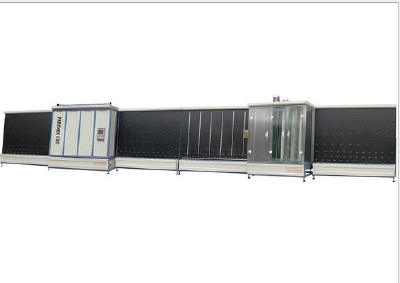

LBP Series Vertical insulating glass press line, PLC control, touch screen display and a full Chinese operation, frequency control, stable operation;

Unique smart sleep, wake-up function, high efficiency, energy saving; ideal investment hollow / glass curtain wall project.

Washing machine full stainless steel whole structure, two cleaning, cleaning LOW-E glass, and set up another level LOW glass membrane.

Unique spray warehouse structure, cleaning, spray water, respectively, in clean water.

Unique air knife structure with strong circulating fan, air-dry quickly and thoroughly, part of the increase fan noise absorption cabinet, noise, safety, and environmental protection.

Flat press use within advanced automatic plate-attaching mode, the front vacuum plate after plate flotation gear, glass cover sheet, once laminated to produce shaped hollow glass, multilayer insulating glass.

Unique before and after care feeding mechanism, lifting the glass to make the two pieces together at the same height, both to protect the drive wheel, and solves the plate press "fragmentation" problem.
